High efficient 10W 20W coverage 500-7300mhz PA amplifier module for anti drone jammer system

  • 1
  • 2
  • 3

Brand Name : Texin

Model Number : TEXINPA020

Place of Origin : Guang Dong china

MOQ : 10

Price : negotiate

Payment Terms : L/C, D/A, D/P, T/T, Western Union,

Supply Ability : 10000per month

Delivery Time : 5-8

Brand : TEXIN

Frequency : 500-6000MHZ (Customized)

RF distance : 1.5-2 km

Current : 2A

Power : 20W(customized)

Jammer Type : UAV FPV drone

Dimensions Of Device : 105*60*20mm

Packing : Box

Working Temperature : -40℃ to +80℃

Gain : 43dbm

Connector : SMA

Weight : 0.323g

Voltage : 24V-28V

Contact Now

High Efficient 10W/20W Coverage 500-7300MHz PA Amplifier Module for Anti-Drone Jammer System
Product Introduction

The TEXINPA020 is Shen Zhen Texin Electronics Co., Ltd's newly designed PA power amplifier module. This 10W/20W PA power amplifier features broad band coverage from 500-7300MHz in a single amplifier, making it significantly more convenient to carry compared to regular amplifiers. It provides highly effective defense against FPV drones operating at 800MHz, 900MHz, 1200MHz, 2400MHz, 5200MHz, and 5800MHz frequency bands. Custom frequency or wattage requirements are available upon request.

  • Frequency: 500-7300MHz
  • Power: 10W/20W
  • Voltage: 28V
  • Current: 1.5A
Technical Specifications
No. Item Data Unit
1 Frequency 500-7300 MHz
2 Test Voltage 28 V
3 Current 1.5 A
4 Output 20 W
5 Gain 43 dB
6 Output Stability 1 dB
7 Connector SMA / Female
8 Output Connector VSWR ≤1.30 (No power and VNA test)
9 Power Supply Wire Red+Black
10 Enable Control High ON Low Off

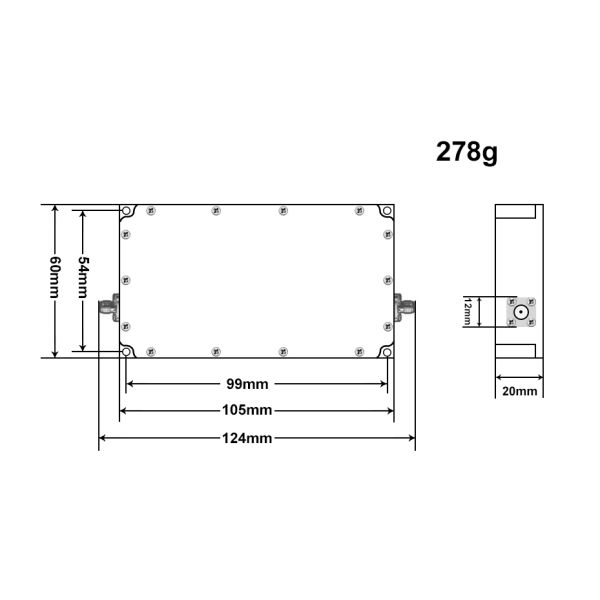

11 Out Shell Size 105*60*20 mm
12 Mount Hole 105*60 mm
13 Weight 300 g
14 Work Temperature -40~+125 ℃
15 Out Shell Material Aluminum
16 Vibration Need Car load ok
17 Input 0-10dbm
Product Images
High efficient 10W 20W coverage 500-7300mhz PA amplifier module for anti drone jammer system High efficient 10W 20W coverage 500-7300mhz PA amplifier module for anti drone jammer system High efficient 10W 20W coverage 500-7300mhz PA amplifier module for anti drone jammer system High efficient 10W 20W coverage 500-7300mhz PA amplifier module for anti drone jammer system
Key Features
  • 500-7300MHz RF frequency coverage
  • 20W output with low power consumption
  • Lightweight 300g design suitable for FPV jammer devices
  • Aluminum shell providing waterproof protection and excellent heat dissipation
  • Industrial grade construction with no built-in signal source
  • Capable of amplifying signals over long distances
  • Power amplifier with signal source compatibility
Usage Guidelines
  • Conduct testing before use
  • Always connect antenna when connecting power supply
  • Install separate close band modules when required
  • Use matching cooling device when output power exceeds high levels
Frequently Asked Questions
Are you an anti-drone module and jammer manufacturer?
Shenzhen TeXin Electronic Co., Ltd. has over 10 years of history in China. We independently develop and produce high-tech, professional anti-drone modules, anti-drone signal jammers, and drone detectors. We also offer antennas, heat sinks, and power supplies.
What is the customized frequency range and output power of the anti-drone jammer module?
TeXin anti-drone modules typically offer 5W to 300W output customization with frequency ranges from 100MHz to 6300MHz. The usual bandwidth is approximately 200MHz (for example, 2300-2500MHz). We can customize according to specific customer requirements even outside these ranges.
Can you show us the test photo and video of the FPV jammer module after we buy them?
Yes, TeXin will provide photos and videos of sample and mass production assembly and testing before delivery as requested by customers.
